Stainless Steel Swage Toggle Terminal(thick-wall) US Type.
It is designed to be fitted over connection plates to create two places of firm link.
This type terminal is quick and easy to install with simple hand tools.
Thick-wall type is more secure & stronger than thin-wall type.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
This type terminal is widely used in various fields such as on boat, on yacht for things like rigging repair and building handrails.
Also ideal fittings for security cables, deck handrails and sculpture.
*Need to be hydraulically crimped or swaged onto the wire rope.
| Technical Notes | Conform to U.S. Fed. Spec. |
| Processing | Welding / Stamping / Machining |
| Surface Finished | Highly Polishing |
| Size-Wire | 1/8″ , 3/16″ , 1/4″ |
| Tips | Need to be hydraulically crimped or swaged onto the wire rope. |

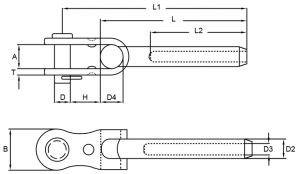

| Wire (in) | L (in) | L1 (in) | L2 (in) | D (in) | D2 (in) | D3 (in) | D4 (in) | A (in) | B (in) | H (in) | T (in) | WT (KG) |
| 1/8″ | 2.4″ | 3.2″ | 1.25″ | 0.23″ | 0.25″ | 0.14″ | 0.39″ | 0.4″ | 0.65″ | 0.685″ | 0.08″ | 0.038″ |
| 3/16″ | 2.6″ | 3.4″ | 1.56″ | 0.23″ | 0.354″ | 0.201″ | 0.39″ | 0.4″ | 0.65″ | 0.685″ | 0.08″ | 0.04″ |
| 1/4″ | 2.95″ | 3.8″ | 1.8″ | 0.31″ | 0.496″ | 0.265″ | 0.5″ | 0.51″ | 0.83″ | 0.71″ | 0.11″ | 0.107″ |
