Stainless Steel Duplex Wire Rope Clip.
Duplex wire rope clip is a flat wire clamp. It is an essential wire rope clamp commonly used in fixing wire rope or cable accessories.
This special wire rope clip is formed by the rope clamp, ferrule and fastening nut.
Stainless Steel Duplex Wire Clips is the use of card-snap method.
The end of the wire rope set in the heart-shaped ring, with a special way of wire rope clamp to be fixed.
Simply wrap the steel wire rope around each side of this grip and tighten down the nuts onto the plate with pliers or a spanner.
| Material | Stainless Steel AISI 316 or AISI 304 |
| Processing | Cast / Machining |
| Surface Finished | Highly Polishing |
| Size | 2mm , 3mm , 4mm , 5mm , 6mm , 8mm , 10mm |
| Origin | China |

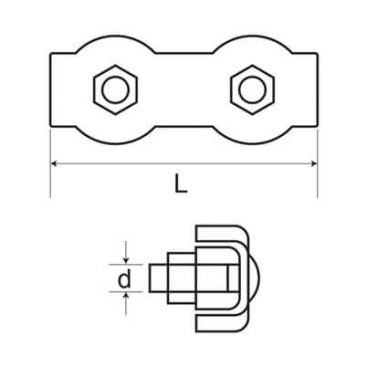

| Wire(mm) | d(mm) | L(mm) |
| 2 | M4 | 33 |
| 3 | M4 | 38 |
| 4 | M5 | 43 |
| 5 | M5 | 51 |
| 6 | M6 | 63 |
| 8 | M8 | 78 |
| 10 | M10 | 95 |
