Stainless Steel Screw Pin Anchor Shackle G209 Type.
This shackle G209 is US type, made of stainless steel 316 or 304 with excellent rust/corrosion resistant performance.
Screw pin anchor shackle is widely used for industrial, agricultural, marine applications.
Sizes available as below list.
| Technical Notes | Conform to U.S. Federal Specification |
| Material | Stainless steel AISI 316/304 |
| Processing | Free Forging / Stamping |
| Surface Finished | Highly Polishing / Electric Coating |
| Size | 3/16” , 1/4” , 5/16” , 3/8” , 7/16” , 1/2” , 5/8” , 3/4” , 7/8” , 1” , 1-1/8” , 1-1/4″ , 1-1/2″ |
| Origin | China |

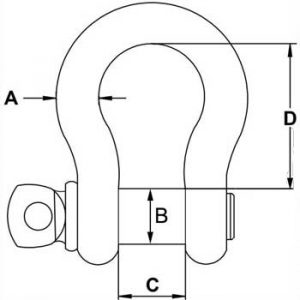

| A | B | C | D | Min.BL |
| inch | kn | |||
| 3/16 | 1/4 | 0.38 | 0.88 | 13.7 |
| 1/4 | 5/16 | 0.47 | 1.13 | 24.4 |
| 5/16 | 3/8 | 0.53 | 1.22 | 38.2 |
| 3/8 | 7/16 | 0.66 | 1.44 | 54.9 |
| 7/16 | 1/2 | 0.75 | 1.69 | 54.9 |
| 1/2 | 5/8 | 0.81 | 1.88 | 97.7 |
| 5/8 | 3/4 | 1.06 | 2.38 | 152.6 |
| 3/4 | 7/8 | 1.25 | 2.81 | 184.7 |
| 7/8 | 1 | 1.44 | 3.31 | 219.7 |
| 1 | 1-1/8 | 1.69 | 3.75 | 278.1 |
| 1-1/8 | 1-1/4 | 1.81 | 4.25 | 390.7 |
| 1-1/4 | 1-3/8 | 2.03 | 4.69 | 494.4 |
| 1-1/2 | 1-5/8 | 2.38 | 5.75 | 672.9 |
