Stainless Steel D Shackle with Screw Pin European Type.
The Stainless Steel D Shackle with Screw pin is made of Stainless steel 316 or 304 which has superb rust/corrosion resistance.
With the additional element of Mo, the SS316 has better corrosion resistant properties than the common SS304.
Screw pin is great clevis to be used as hardware for the eye of a lifting sling.
D shackle helps protecting the eye of a nylon lifting sling or polyester round slings from wear and tear.
Sizes available from M4 to M38.
| Technical Notes | European Type |
| Material | Stainless Steel 316 or 304 |
| Processing | Forged / Stamping |
| Surface Finished | Highly Polishing / Electric Coating |
| Size | M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M22, M25, M28, M32, M36, M38 |
| Origin | China |

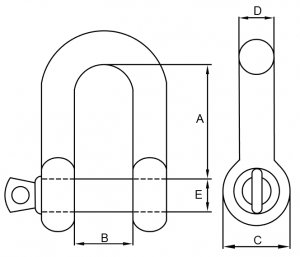

| SIZE (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | MBL (KN) |
| 4mm | 16 | 8 | 8 | 4 | 4 | 5.8 |
| 5mm | 20 | 10 | 10 | 5 | 5 | 9.1 |
| 6mm | 24 | 12 | 12 | 6 | 6 | 13.2 |
| 8mm | 32 | 16 | 16 | 8 | 8 | 23.7 |
| 10mm | 40 | 20 | 20 | 10 | 10 | 37.3 |
| 12mm | 48 | 24 | 24 | 12 | 12 | 54.9 |
| 14mm | 56 | 28 | 28 | 14 | 14 | 74.8 |
| 16mm | 64 | 32 | 32 | 16 | 16 | 97.7 |
| 18mm | 72 | 36 | 36 | 18 | 18 | 136.1 |
| 20mm | 76 | 40 | 40 | 20 | 20 | – |
| 22mm | 88 | 44 | 44 | 22 | 22 | 184.7 |
| 25mm | 100 | 50 | 50 | 25 | 25 | – |
| 28mm | 112 | 56 | 56 | 28 | 28 | 223.8 |
| 32mm | 128 | 64 | 64 | 32 | 32 | 353.6 |
| 36mm | 144 | 72 | 72 | 36 | 36 | – |
| 38mm | 152 | 76 | 76 | 38 | 38 | – |
