Stainless Steel Regular Eye Bolt US Type G-291.
Eye bolt is a bolt with a loop at one end. Widely used to attach a securing eye to a structure so that ropes or cables could be tied to it.
Made of stainless steel 316 or 304 with superb rust/corrosion resistant performance.
This type eye bolt is used for vertical loading. Also suitable for marine, sailing and industrial applications.
Regular sizes available from 1/4" to 1-1/4".
| Technical Notes | Conform to G-291 US.FED.SPEC. |
| Material | Stainless Steel AISI 316 / AISI 304 |
| Processing | Precision Cast |
| Suface Finished | Machine Polishing |
| Origin | China |

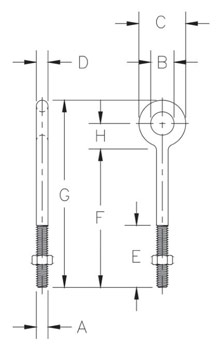

| Shank Dia. & Length (in) | Working Load Limit (lbs) | Weight Per 100(lbs) | Dimensions (in) | |||||||
| A | B | C | D | E | F | G | H | |||
| 1/4 x 2” | 500 | 8.2 | 0.25 | 0.5 | 1 | 0.25 | 1.5 | 2 | 3.06 | 0.56 |
| 1/4 x 4” | 500 | 11.7 | 0.25 | 0.5 | 1 | 0.25 | 2.5 | 4 | 5.06 | 0.56 |
| 5/16 x 2 1/4” | 800 | 13.3 | 0.31 | 0.62 | 1.25 | 0.31 | 1.5 | 2.25 | 3.56 | 0.69 |
| 5/16 x 4 1/4” | 800 | 25 | 0.31 | 0.62 | 1.25 | 0.31 | 2.5 | 4.25 | 5.56 | 0.69 |
| 3/8 x 2 1/2” | 1200 | 23.3 | 0.38 | 0.75 | 1.5 | 0.38 | 1.5 | 2.5 | 4.12 | 0.88 |
| 3/8 x 4 1/2” | 1200 | 29.5 | 0.38 | 0.75 | 1.5 | 0.38 | 2.5 | 4.5 | 6.12 | 0.88 |
| 3/8 x 6” | 1200 | 35.2 | 0.38 | 0.75 | 1.5 | 0.38 | 2.5 | 6 | 7.62 | 0.88 |
| 1/2 x 3 1/4” | 2200 | 50.3 | 0.5 | 1 | 2 | 0.5 | 1.5 | 3.25 | 5.38 | 1.12 |
| 1/2 x 6” | 2200 | 66.1 | 0.5 | 1 | 2 | 0.5 | 3 | 6 | 8.12 | 1.12 |
| 1/2 x 8” | 2200 | 82 | 0.5 | 1 | 2 | 0.5 | 3 | 8 | 10.12 | 1.12 |
| 1/2 x 10” | 2200 | 88 | 0.5 | 1 | 2 | 0.5 | 3 | 10 | 12.12 | 1.12 |
| 1/2 x 12” | 2200 | 114.2 | 0.5 | 1 | 2 | 0.5 | 3 | 12 | 14.12 | 1.12 |
| 1/2 x 15” | 2200 | 116.85 | 0.5 | 1 | 2 | 0.5 | 4 | 15 | 17.12 | 1.12 |
| 5/8 x 4” | 3500 | 103.1 | 0.62 | 1.25 | 2.5 | 0.62 | 2 | 4 | 6.69 | 1.44 |
| 5/8 x 6” | 3500 | 118.2 | 0.62 | 1.25 | 2.5 | 0.62 | 3 | 6 | 8.69 | 1.44 |
| 5/8 x 8” | 3500 | 135.1 | 0.62 | 1.25 | 2.5 | 0.62 | 3 | 8 | 10.69 | 1.44 |
| 5/8 x 10” | 3500 | 153.6 | 0.62 | 1.25 | 2.5 | 0.62 | 3 | 10 | 12.69 | 1.44 |
| 5/8 x 12” | 3500 | 167.1 | 0.62 | 1.25 | 2.5 | 0.62 | 4 | 12 | 14.69 | 1.44 |
| 5/8 x 15” | 3500 | 201.16 | 0.62 | 1.25 | 2.5 | 0.62 | 5 | 15 | 17.69 | 1.44 |
| 5/8 x 24” | 3500 | 279.1 | 0.62 | 1.25 | 2.5 | 0.62 | 6 | 24 | 26.69 | 1.44 |
| 3/4 x 4 1/2” | 5200 | 168.6 | 0.75 | 1.5 | 3 | 0.75 | 2 | 4.5 | 7.69 | 1.69 |
| 3/4 x 6” | 5200 | 184.5 | 0.75 | 1.5 | 3 | 0.75 | 3 | 6 | 9.19 | 1.69 |
| 3/4 x 8” | 5200 | 207.9 | 0.75 | 1.5 | 3 | 0.75 | 3 | 8 | 11.19 | 1.69 |
| 3/4 x 10” | 5200 | 235 | 0.75 | 1.5 | 3 | 0.75 | 3 | 10 | 13.19 | 1.69 |
| 3/4 x 12” | 5200 | 257.5 | 0.75 | 1.5 | 3 | 0.75 | 4 | 12 | 15.19 | 1.69 |
| 3/4 x 15” | 5200 | 298 | 0.75 | 1.5 | 3 | 0.75 | 5 | 15 | 18.19 | 1.69 |
| 7/8 x 5” | 7200 | 270 | 0.88 | 1.75 | 3.5 | 0.88 | 2.5 | 5 | 8.75 | 2.00 |
| 7/8 x 8” | 7200 | 308 | 0.88 | 1.75 | 3.5 | 0.88 | 4 | 8 | 11.75 | 2.00 |
| 7/8 x 12” | 7200 | 400 | 0.88 | 1.75 | 3.5 | 0.88 | 4 | 12 | 15.75 | 2.00 |
| 1 x 6” | 10000 | 421 | 1 | 2 | 4 | 1.00 | 3 | 6 | 10.31 | 2.31 |
| 1 x 9” | 10000 | 468.5 | 1 | 2 | 4 | 1.00 | 4 | 9 | 13.31 | 2.31 |
| 1 x 12” | 10000 | 540 | 1 | 2 | 4 | 1.00 | 4 | 12 | 16.31 | 2.31 |
| 1 x 18” | 10000 | 650 | 1 | 2 | 4 | 1.00 | 7 | 18 | 22.31 | 2.31 |
| 1 1/4 x 8” | 15200 | 750 | 1.25 | 2.5 | 5 | 1.25 | 4 | 8 | 13.38 | 2.88 |
| 1 1/4 x 12” | 15200 | 900 | 1.25 | 2.5 | 5 | 1.25 | 4 | 12 | 17.38 | 2.88 |
| 1 1/4 x 20” | 15200 | 1210 | 1.25 | 2.5 | 5 | 1.25 | 6 | 20 | 25.38 | 2.88 |
