Australian Standard Short Link Chain.
Short link chain Australian standard, made of superior mild steel, is used for marine anchoring and mooring applications.
Austrilian Standard short-link design ensures proper fit for most Australian windlasses.
Sizes available from 5mm to 24mm.
| Technical Notes | Conform to Australian Standard |
| Material | Superior Mild Steel |
| Processing | Welded |
| Surface Finished | Electric Galvanized / Hot Dip Galvanized |
| Size | 5mm , 6mm , 8mm , 10mm , 13mm , 16mm , 20mm , 22mm , 24mm |
| Origin | China |
| CHAIN SIZE (MM) | WORKING LOAD (MT) | LINK DIMENSION | LINKS PER M | LENGTH PER 100KG | |||

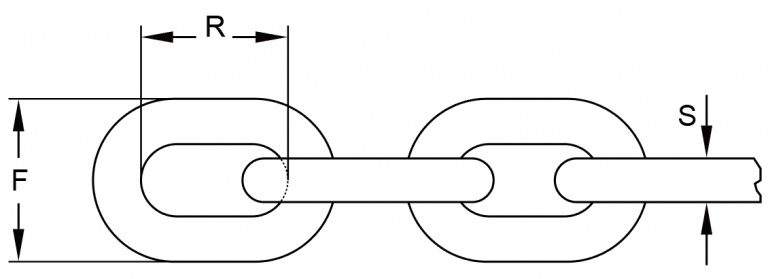

| DIA. (MM) | INSIDE LENGTH (MM) | OUTSIDE WIDTH (MM) | B.F. | H.D.G. | |||
| PC | M | M | |||||
| 5 | 0.24 | 5 | 14.6 | 17.2 | 68.3 | 174 | 167 |
| 6 | 0.32 | 6.3 | 18.9 | 21.5 | 52.9 | 114 | 108 |
| 8 | 0.53 | 8.0 | 24.0 | 27.5 | 41.7 | 70.5 | 67.0 |
| 10 | 0.83 | 10.0 | 29.5 | 33.5 | 33.9 | 45.2 | 42.9 |
| 12 | 1.50 | 12.5 | 37.5 | 40.6 | 26.7 | 29.5 | 28.0 |
| 13 | 1.60 | 13 | 38.3 | 44.6 | 25.8 | 26.9 | 26.3 |
| 16 | 2.31 | 16 | 47.0 | 54.0 | 21.3 | 17.6 | 16.7 |
| 20 | 3.45 | 20 | 59.2 | 68.5 | 16.9 | 11.3 | 11.1 |
| 22 | 4.55 | 22 | 64.9 | 77 | 15.4 | 9.5 | 9.2 |
| 24 | 5.34 | 24 | 71 | 82.2 | 14.1 | 7.8 | 7.6 |
