DIN3093(EN13411-3) Wire Rope Aluminium Ferrule.
Also called as wire rope sleeve, cable ferrule aluminium.
It is made of superior aluminium, DIN3093(EN13411-3) Wire Rope Aluminium Ferrule can be easily attached to wire rope directly by crimping tool.
Our range of wire rope sleeve is available in standard as well as customized.
| Material | Superior Aluminium Material |
| Processing | Machining + Extruded |
| Size | 1mm , 1.5mm , 2mm , 2.5mm , 3mm , 3.5mm , 4mm , 4.5mm , 5mm , 6mm , 6.5mm , 7mm , 8mm , 9mm , 10mm , 11mm , 12mm , 13mm , 14mm , 16mm , 18mm , 20mm , 22mm , 24mm , 26mm , 28mm , 30mm , 32mm , 34mm , 36mm , 38mm , 40mm , 42mm , 44mm , 46mm , 48mm , 50mm , 52mm , 54mm , 56mm , 58mm , 60mm |
| Origin | China |

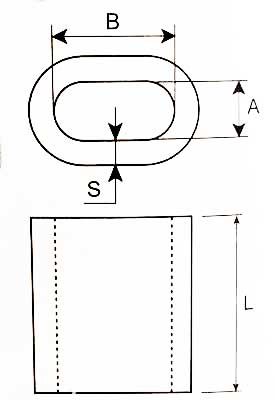

| Size | A(mm) | B(mm) | S(mm) | L(mm) | Weight |
| kgs/1000pcs | |||||
| 1 | 1.2 | 2.4 | 0.65 | 5 | 0.098 |
| 1.5 | 1.7 | 3.4 | 0.75 | 6 | 0.176 |
| 2 | 2.2 | 4.4 | 0.85 | 7 | 0.285 |
| 2.5 | 2.7 | 5.4 | 1.05 | 9 | 0.439 |
| 3 | 3.3 | 6.6 | 1.25 | 11 | 0.907 |
| 3.5 | 3.8 | 7.6 | 1.5 | 13 | 1.18 |
| 4 | 4.4 | 8.8 | 1.7 | 14 | 1.63 |
| 4.5 | 4.9 | 9.8 | 1.9 | 16 | 2.39 |
| 5 | 5.5 | 11 | 2.1 | 18 | 3.62 |
| 6 | 6.6 | 13.2 | 2.5 | 21 | 5.87 |
| 6.5 | 7.2 | 14.4 | 2.7 | 23 | 7.18 |
| 7 | 7.8 | 15.6 | 2.9 | 25 | 9.83 |
| 8 | 8.8 | 17.6 | 3.3 | 28 | 12.96 |
| 9 | 9.9 | 19.8 | 3.7 | 32 | 18.94 |
| 10 | 10.9 | 21.8 | 4.1 | 35 | 24.09 |
| 11 | 12.1 | 24.2 | 4.5 | 39 | 35.35 |
| 12 | 13.2 | 26.4 | 4.9 | 42 | 44.18 |
| 13 | 14.2 | 28.4 | 5.4 | 46 | 59.86 |
| 14 | 15.3 | 30.6 | 5.8 | 49 | 73.5 |
| 16 | 17.5 | 35 | 6.7 | 56 | 111 |
| 18 | 19.6 | 39.2 | 7.6 | 63 | 156 |
| 20 | 21.7 | 43.4 | 8.4 | 70 | 217 |
| 22 | 24.3 | 48.6 | 9.2 | 77 | 292 |
| 24 | 26.4 | 52.8 | 10 | 84 | 376 |
| 26 | 28.5 | 57 | 10.9 | 91 | 481 |
| 28 | 31 | 62 | 11.7 | 98 | 603 |
| 30 | 33.1 | 66.2 | 12.5 | 105 | 739 |
| 32 | 35.2 | 70.4 | 13.4 | 112 | 897 |
| 34 | 37.8 | 75.6 | 14.2 | 119 | 1077 |
| 36 | 39.8 | 79.6 | 15 | 126 | 1275 |
| 38 | 41.9 | 83.8 | 15.8 | 133 | 1503 |
| 40 | 44 | 88 | 16.6 | 140 | 1734 |
| 42 | 46.2 | 92.4 | 17.5 | 147 | 2024 |
| 44 | 48.4 | 96.8 | 18.3 | 154 | 2314 |
| 46 | 50.6 | 101.2 | 19.2 | 161 | 2662 |
| 48 | 52.8 | 105.6 | 20 | 168 | 3010 |
| 50 | 55 | 110 | 20.8 | 175 | 3412 |
| 52 | 57.2 | 114.4 | 21.6 | 182 | 3813 |
| 54 | 59.4 | 118.8 | 22.5 | 189 | 4293 |
| 56 | 61.6 | 123.2 | 23.3 | 196 | 4772 |
| 58 | 63.8 | 127.6 | 24.2 | 203 | 5326 |
| 60 | 66 | 132 | 25 | 210 | 5880 |
