Wire Rope Sling – Two Leg with Eyes/Hooks/Shackles.
Type | Two Leg with Eyes/Hooks/Shackles |
| Steel Wire Rope Construction | 6X36, 6X37, 8X19, 7X19, 6X19, 6X25 etc. |
Finishing | Hot Dip Galvanized, Bright Electro Galvanized, Un-galvanized |
| Safety Factor | 5:1 |

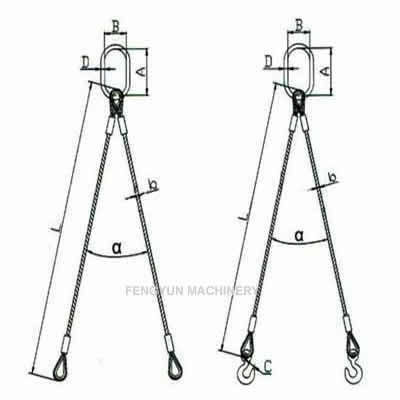

| Rope dia.(mm) | WLL(KN)α≤90o | WLL(KN)90o≤α≤120o | Loop dimension AｘBｘC(mm) | Dimension of hook opening C(mm) |
| 6 | 4.10 | 2.90 | 110ｘ60ｘ14 | 24 |
| 8 | 6.90 | 4.90 | 110ｘ60ｘ14 | 24 |
| 10 | 11.00 | 7.90 | 110ｘ60ｘ16 | 25 |
| 12 | 16.50 | 11.80 | 110ｘ60ｘ16 | 25 |
| 14 | 22.00 | 15.70 | 135ｘ75ｘ18 | 27 |
| 16 | 30.00 | 21.60 | 135ｘ75ｘ18 | 30 |
| 18 | 37.00 | 26.50 | 160ｘ90ｘ22 | 38 |
| 20 | 45.00 | 32.40 | 160ｘ90ｘ22 | 38 |
| 24 | 68.60 | 49.00 | 180ｘ100ｘ26 | 45 |
| 28 | 96.00 | 68.60 | 200ｘ110ｘ32 | 61 |
| 32 | 123.60 | 88.30 | 260ｘ140ｘ36 | 66 |
| 38 | 165.00 | 117.70 | 300ｘ160ｘ40 | 87 |
| 40 | 185.00 | 132.40 | 340ｘ180ｘ45 | 87 |
| 44 | 206.00 | 147.00 | 340ｘ180ｘ45 | 87 |
| 52 | 302.40 | 216.00 | 350ｘ190ｘ50 | 102 |
| 56 | 359.80 | 257.00 | 400ｘ200ｘ56 | 107 |
| 64 | 469.00 | 335.00 | 430ｘ220ｘ63 | 121 |
| 70 | 560.00 | 400.00 | 460ｘ250ｘ72 | 146 |
