Galvanized Wire Rope Thimble DIN 6899 A.
Made of super carbon steel, this thimble not only creates a natural curve to support for the wire rope but also be used with other rigging accessories with a solid wire rope thimble eye to form wire rope sling.
Compatible with sleeve or wire rope clip, Galvanized Wire Rope Thimble DIN 6899 A extends the working life of cable or wire rope by protecting against everyday wear.
Various sizes are available.
| Technical Notes | Conform to DIN 6899 A |
| Material | Super Carbon Steel |
| Surface Finished | Electric Galvanized |
| Size | 2.5mm , 3mm , 4mm , 5mm , 6mm , 7mm , 8mm , 9mm , 10mm , 11mm , 12mm , 13mm , 14mm , 16mm , 18mm , 20mm , 22mm , 24mm , 28mm |
| Origin | China |

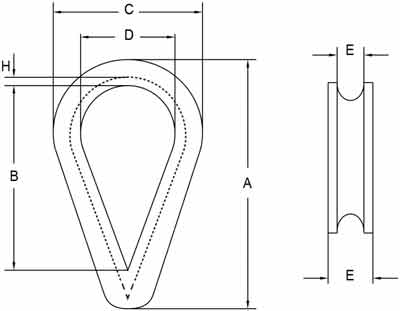

| Size (mm) | Dimensions (mm) | WT/100Pcs (kg) | ||||||
| A | B | C | D | E | F | H | ||
| 2.5 | 28 | 21.5 | 16 | 10 | 5 | 3 | 1 | 0.14 |
| 3 | 30 | 23.5 | 17 | 11 | 5.5 | 3.5 | 1 | 0.35 |
| 4 | 34 | 26.5 | 19 | 12 | 6 | 4 | 1 | 0.42 |
| 5 | 36 | 28 | 20 | 13 | 7 | 5 | 1 | 0.8 |
| 6 | 38 | 30 | 22 | 14 | 8 | 6 | 1 | 0.85 |
| 7 | 43 | 33 | 24 | 15 | 9 | 7 | 1.2 | 1.1 |
| 8 | 46 | 35 | 26 | 16 | 10 | 8 | 1.2 | 1.7 |
| 9 | 50 | 39 | 29 | 18 | 11 | 9 | 1.2 | 2.1 |
| 10 | 56 | 43 | 32 | 20 | 13 | 10 | 1.5 | 3.5 |
| 11 | 63 | 47.5 | 36 | 22 | 14 | 11 | 1.5 | 3.7 |
| 12 | 68 | 51.5 | 40 | 24 | 15 | 12 | 1.5 | 5.25 |
| 13 | 75 | 56.5 | 44 | 26 | 17 | 13 | 2 | 7.25 |
| 14 | 82 | 61 | 48 | 28 | 18 | 14 | 2 | 8.33 |
| 16 | 91 | 69.5 | 54 | 32 | 21 | 16.5 | 2.5 | 12.3 |
| 18 | 102 | 78 | 59 | 35 | 24 | 18 | 3 | 18.5 |
| 20 | 114 | 86.5 | 68 | 40 | 28 | 20 | 4 | 31.5 |
| 22 | 126 | 95 | 76 | 44 | 30 | 22 | 4 | 236.5 |
| 24 | 135 | 103.5 | 84 | 48 | 32 | 24 | 4 | 41.7 |
| 28 | 162 | 120.5 | 100 | 56 | 38 | 28 | 5 | 72.1 |
