Description:
Australia Standard Ratchet Load Binder.
Ratchet Load Binder（AS/NZS 4344）with the benefit of high pretension and the winged Grab Hooks to ensure full lashing capacity whilst in use.
It is used for the binding of container, vehicle and other goods in the process of shipping & transportation
Features:
*Made to Australian Standards AS/NZS 4344.
*Restrain industry and general loads for transport operations.
*Made of dropped forged steel, quenched and tempered.
*Size：6mm, 8mm, 10mm, 13mm

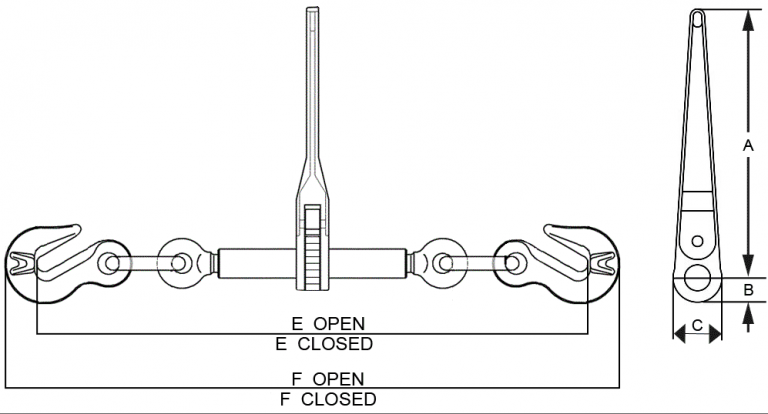

Ratchet Load Binder with winged Grab Hooks— Specification:
| CHAIN SIZE | LASHING CAPACITY | MBF | WT. | DIMENSIONS | ||||
| A | C | E-Open | E-Closed | G | ||||
| mm | chain | kn | kg | mm | mm | mm | mm | mm |
| 6 | 2300kg | 46 | 1.69 | 210 | 42 | 528 | 415 | 10 |
| 8 | 4100kg | 74 | 4.9 | 355 | 65 | 754 | 590 | 11 |
| 10 | 6400kg | 118 | 5.4 | 355 | 65 | 775 | 610 | 12 |
| 13 | 10500kg | 176 | 7.5 | 355 | 65 | 870 | 700 | 15 |
