Description:
Ratchet Load Binder without Links & Hooks.
This load Binder is without Links & Hooks and used as tensioners with Chain Lashing on transportation.
The easy operation of this load binder makes it favorite amongst chain lashing system.
Features:
*Drop forged steel.
*Heat treated for extra strength.
*Finishing: Powder coated or electric galv.
*Minimum breaking loading: 3.5 times to WLL.
*Packing: Carton then steel pallet

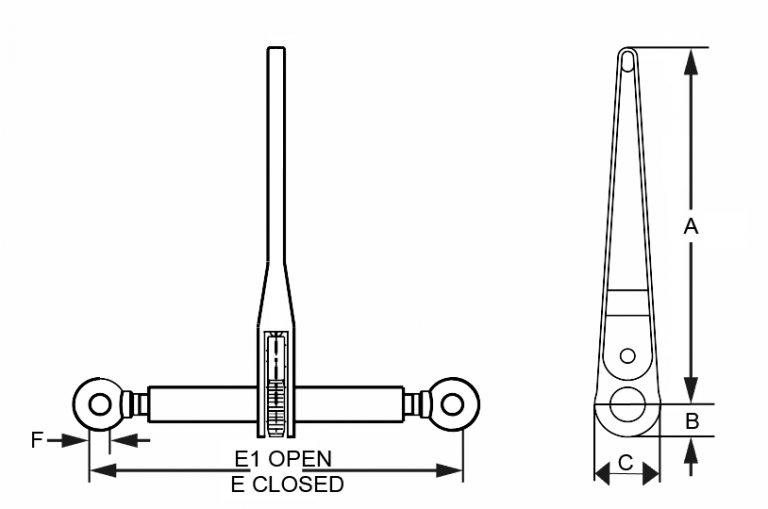

Ratchet Load Binder without Links & Hooks— Specification:
| Size | Min-Max Chain Size | WLL | Proof Load | Breaking Load | Weight | Handle Length | Dimensions (in) | |||||
| (in) | (lbs) | (lbs) | (lbs) | (lbs) | (in) | A | B | C | E | E1 | F | |
| 5/16″-3/8″ | 5/16-3/8 | 5400 | 10800 | 19000 | 7.8 | 13.42 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 | 0.79 |
| 3/8″-1/2″ | 3/8-1/2 | 9200 | 18400 | 33000 | 7.8 | 13.92 | 13.92 | 1.3 | 2.6 | 13.7 | 21.7 | 1.02 |
| 1/2″-5/8″ | 1/2-5/8 | 13000 | 26000 | 46000 | 8.5 | 13.92 | 13.92 | 1.3 | 2.6 | 24.13 | 32.13 | 27.04 |
