Zinc Plated Quick Link.
It is easy and quick to attach/detach when use this link.
Self-aligning, positive threaded closure–fasten tightly with only fingers.
Excellent for chain display system, marine, security, decorative and many more applications.
| Material | Supeior Carbon Steel |
| Surface Finished | Zinc Plated |
| Size | 3.5mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,14mm,16mm |
| Tip | Not to be used for overhead lifting. |

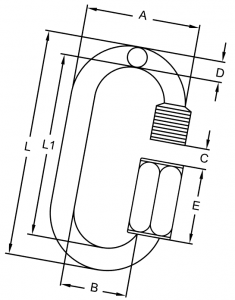

| Size | A | B | C | D | L | L1 | E | W.L.L | N.W. |
| mm | mm | mm | mm | mm | mm | mm | lbs | kgs/100pcs | |
| 3.5mm | 17 | 10 | 5 | 3.5 | 36 | 29 | 11 | 200 | 0.8 |
| 4mm | 19.5 | 11.5 | 5.5 | 4 | 39.5 | 31.5 | 12.5 | 440 | 1.2 |
| 5mm | 23 | 13 | 6.5 | 5 | 48.5 | 35.5 | 16 | 660 | 2.1 |
| 6mm | 26.5 | 14.5 | 7.5 | 6 | 57 | 45 | 19 | 880 | 3.5 |
| 7mm | 30 | 16 | 8.5 | 7 | 66 | 52 | 21.5 | 1300 | 5.45 |
| 8mm | 33.5 | 17.5 | 10.5 | 8 | 74 | 58 | 24 | 1760 | 7.5 |
| 9mm | 37 | 19 | 11 | 9 | 80 | 62 | 26 | 2200 | 10.5 |
| 10mm | 40.5 | 20.5 | 12 | 10 | 89 | 69 | 29 | 2640 | 13.5 |
| 12mm | 47.5 | 23.5 | 15 | 12 | 104.5 | 80.5 | 33 | 3300 | 22.8 |
| 14mm | 54.5 | 26.5 | 17 | 14 | 121 | 93 | 38.5 | 6100 | 35 |
| 16mm | 61.5 | 29.5 | 19 | 16 | 140 | 108 | 45 | 8000 | 50 |
