Carbon Steel Delta Quick Link.
It is only to be loaded along the major axis. When connected with chain, Delta Quick Link should be of the same diameter.
Self-aligning, positive threaded closure–fasten tightly with fingers, requiring no tool.
| Material | Carbon Steel |
| Surface Finished | Zinc Plated |
| Size | 3.5mm , 4mm , 5mm , 6mm , 8mm , 10mm , 12mm |
| Warning | Not to be use for overhead lifting |
| Origin | China |

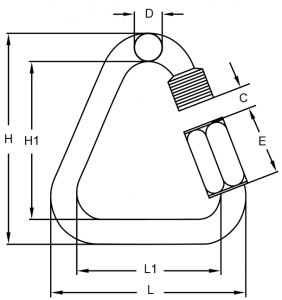

| Size | H | H1 | C | D | L | L1 | E | W.L.L | N.W. |
| mm | mm | mm | mm | mm | mm | mm | lbs | kg/100pcs | |
| 3.5mm | 36 | 29 | 5 | 3.5 | 31.5 | 11 | 24 | 200 | 0.92 |
| 4mm | 40 | 32 | 5.5 | 4 | 35.5 | 12.5 | 27.5 | 250 | 1.35 |
| 5mm | 48 | 38 | 6.5 | 5 | 40 | 16 | 30 | 330 | 2.3 |
| 6mm | 56 | 44 | 7.5 | 6 | 47 | 19 | 35 | 6550 | 4.02 |
| 8mm | 73 | 57 | 10.5 | 8 | 56 | 24 | 40 | 1210 | 8.97 |
| 10mm | 87 | 67 | 12 | 10 | 66 | 29 | 46 | 1320 | 15.52 |
| 12mm | 104 | 80 | 15 | 12 | 75 | 33 | 51 | 2425 | 28.75 |
