Galvanized Split C Link.
Also called as C type link, C chain link and C connecting link.
All connected together by twisting the link into place at a 95 degree angle.
It is commonly used to extend the length of chain, attach 2 lengths of chain together, close then weld the link.
| Material | Superior Mild Steel |
| Processing | Stamping |
| Surface Finished | Zinc Plated(Electric Galvanized) |
| Size | 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ |
| Origin | China |

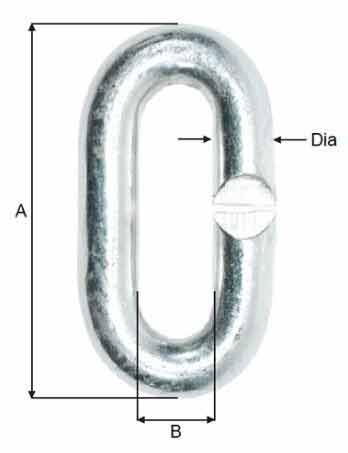

| Size (in) | Dia. (mm) | WLL (5:1,ton) | A (mm) | B (mm) | Weight (kg/100pcs) |
| 3/8” | 10 | 0.1 | 50 | 16 | 8.5 |
| 1/2” | 12 | 0.2 | 55 | 18 | 16.5 |
| 5/8” | 16 | 0.3 | 72 | 21 | 33 |
| 3/4” | 19 | 0.5 | 80 | 24 | 50 |
| 7/8” | 22 | 0.6 | 88 | 27 | 75 |
