Description
Snap Hook with Safety Screw
This snap hook is hard wearing and classically designed to suit the fast & quick attachment & detachment.
The high quality Zinc galvanized steel has excellent strength with superb rust resistance for outdoor use.
| Material | Carbon steel or Stainless steel 316/304 |
| Finish | Zinc plated, Electric galvanized |
| Size | 5*50mm -14*180mm |

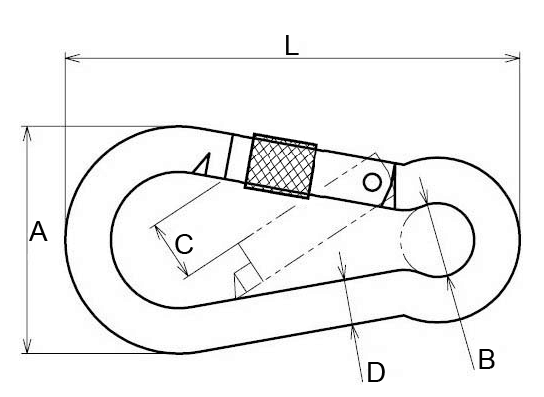

Specification- Snap Hook with Safety Screw
| Size | A | B | C | D | L | W.L.L | N.W. |
| mm | mm | mm | mm | mm | mm | lbs | kg/100pcs |
| 5×50 | 25 | 8 | 6 | 5 | 50 | 150 | 2 |
| 6×60 | 30 | 9 | 7 | 6 | 60 | 250 | 3 |
| 7×70 | 35 | 10 | 7.5 | 7 | 70 | 320 | 5 |
| 8×80 | 40 | 12 | 8.5 | 8 | 80 | 400 | 7.5 |
| 9×90 | 45 | 12 | 9 | 9 | 90 | 500 | 9.8 |
| 10×100 | 50 | 15 | 10 | 10 | 100 | 650 | 16 |
| 11×120 | 57 | 18 | 16 | 11 | 120 | 700 | 21 |
| 12×140 | 67 | 20 | 18 | 12 | 140 | 800 | 27 |
| 13×160 | 74 | 22 | 25 | 13 | 160 | 1200 | 36 |
| 14×180 | 86 | 22 | 39 | 14 | 180 | 1400 | 51 |
