320A Eye Hook with Latch Grade 70.
It is designed for attaching to the end of wire rope sling with a safety latch, to lift objects quickly by crane and land them securely without the use of shackle.
Eye Hook with Latch 320A is made of superior alloy steel, commonly used in lifting & rigging field.
Do not exceed the WLL.
The latch is only designed to retain slings and rigging attachment.
The latch must not support the Load.
| Technical Notes | Conform to U.S. Federal Specification |
| Material | Superior Alloy Steel |
| Safety Factor | 5:1 |
| Processing | Body: Drop Forged / Quenched and Tempered Latch: Stamping |
| Surface Finished | Body: Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color Latch: Electric Galvanized / Self-Color |
| Tips | Customized according to customer's requirements |

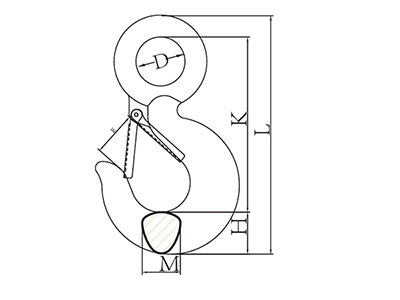

| Weight (KG) | Alloy Steel | D±0.6 | E±2 | H±1.5 | K±2.5 | M±5 | L±3 | |
| WLL(ton) | B.L.(ton) | |||||||
| 0.21 | 0.75 | 3.75 | 16.5 | 19 | 17 | 72 | 16 | 97 |
| 0.28 | 1 | 5 | 19 | 22 | 19 | 82 | 16 | 110 |
| 0.4 | 1.5 | 7.5 | 23 | 23 | 21 | 93.5 | 17.5 | 125 |
| 0.65 | 2 | 10 | 28 | 24 | 26 | 103 | 21 | 140.5 |
| 0.81 | 3 | 15 | 31 | 27.5 | 28 | 119 | 23 | 162 |
| 1.75 | 5 | 25 | 39 | 33 | 37 | 146 | 30 | 201 |
| 3.77 | 7 | 35 | 51 | 40 | 46.5 | 186.5 | 38 | 256 |
| 6.8 | 11 | 55 | 62 | 51 | 57 | 231.5 | 46 | 317 |
| 9.96 | 15 | 75 | 73 | 57 | 70 | 260 | 55 | 360 |
| 15.33 | 22 | 110 | 89 | 75 | 76 | 318 | 68.5 | 434 |
| 27.2 | 30 | 150 | 90 | 82 | 91 | 360 | 70 | 495.5 |
