Lifting Eye Bolt DIN580.
The DIN 580 eye bolt is the mark which refers to the thread size.
It is designed to provide a lifting point to attach a hook or rope prior to lifting heavy object.
| Technical Notes | Conform to DIN580 |
| Material | Super Mild Steel |
| Processing | Drop Forged |
| Surface Finished | Zinc plated / Hot dipped galvanized / Self-color |
| Size | M8 , M10 , M12 , M14 , M16 , M20 , M22 , M24 , M27 , M30 , M33 , M36 , M39 , M42 , M45 , M48 , M52 , M56 , M64 , M72x6 , M80x6 , M100x6 |

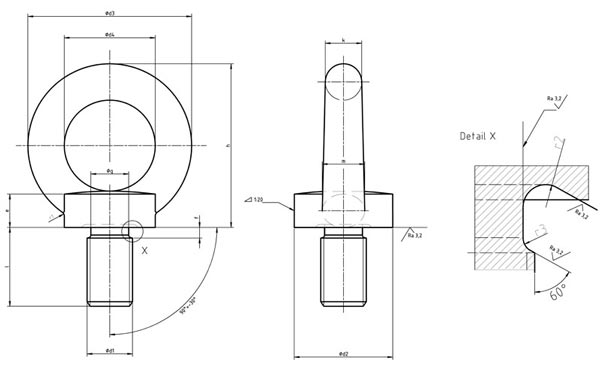

Thread size (d1) | Head dia. (d2) | Eye outer dia. (d3) | Eye dia. (d4) | Foot height (e) | Undercut length (f) | Height (h) | Eye width (k) | Bolt length (l) | Weight (kg/pc) |
| M8 | 20 | 36 | 20 | 6 | 2,5 | 36 | 8 | 13 | 0,06 |
| M10 | 25 | 45 | 25 | 8 | 3 | 45 | 10 | 17 | 0,11 |
| M12 | 30 | 54 | 30 | 10 | 3,5 | 53 | 12 | 20,5 | 0,18 |
| M16 | 35 | 63 | 35 | 12 | 4 | 62 | 14 | 27 | 0,28 |
| M20 | 40 | 72 | 40 | 14 | 5 | 71 | 16 | 30 | 0,45 |
| M24 | 50 | 90 | 50 | 18 | 6 | 90 | 20 | 36 | 0,74 |
| M30 | 65 | 108 | 60 | 22 | 7 | 109 | 24 | 45 | 1,66 |
| M36 | 75 | 126 | 70 | 26 | 8 | 128 | 28 | 54 | 2,65 |
| M42 | 85 | 144 | 80 | 30 | 6 | 147 | 32 | 63 | 4,03 |
| M48 | 100 | 166 | 90 | 35 | 10 | 168 | 38 | 68 | 6,38 |
| M56 | 110 | 184 | 100 | 38 | 11 | 187 | 42 | 78 | 8,8 |
| M64 | 120 | 206 | 110 | 42 | 12 | 208 | 48 | 90 | 12,4 |
| M72x6 | 150 | 260 | 140 | 50 | 12 | 260 | 60 | 100 | 23,3 |
| M80x6 | 170 | 296 | 160 | 55 | 12 | 298 | 68 | 112 | 34,2 |
| M100x6 | 190 | 330 | 180 | 60 | 12 | 330 | 75 | 130 | 49,1 |
