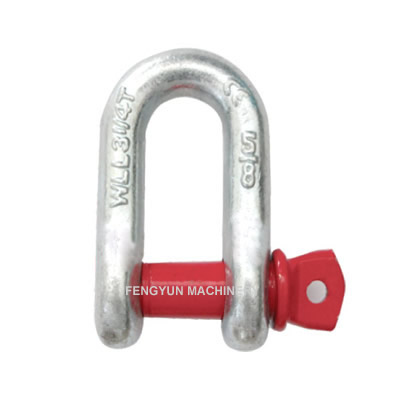

US Type Screw Pin chain shackles G-210.
It is intended for use in straight line pull or lift only, also excellent for use with single leg web lifting slings.
Paired with chain, they provide a connecting link to connect to other hardware.
A secure screw pin mechanism makes connection fast and easy.
US Type Screw Pin chain shackle G-210 is used for many applications in marine, industrial or agricultural field.
| Technical Notes | Conform U.S. Fed. Spec. (ASME B30.26) |
| Material | Body: Super Carbon Steel Screw Pin: Alloy Steel / Super Carbon Steel |
| Safety Factor | 6 : 1 / 4 :1 |
| Processing | Body: Drop Forged / Quenched and Tempered Screw Pin: Cold/Hot Forging / Drop Forged / Quenched and Tempered |
| Surface Finished | Body: Hot Dipped Galvanized / Powder Coated / Zinc Plated Screw Pin: Powder Coated / Zinc Plated |
| Size | 1/4” , 5/16” , 3/8” , 7/16” , 1/2” , 5/8” , 3/4” , 7/8” , 1” , 1-1/2” , 1/1/4” , 1-3/8” , 1-1/2” , 1-3/4” , 2” , 2-1/2” |
| Tips | Special specification and marks can be made according to the requirement |

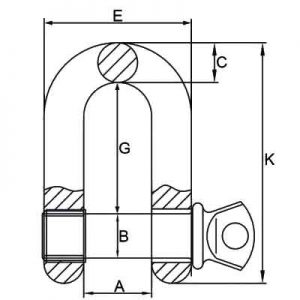

| Size (in) | WLL (ton) | Weight | Dimensions (in) | Tolerance+/- | ||||||
| A | B | C | E | G | K | G | A | |||
| 1/4 | 1/2 | 0.11 | 0.47 | 0.31 | 0.25 | 0.97 | 0.97 | 1.59 | 0.06 | 0.06 |
| 5/16 | 3/4 | 0.17 | 0.53 | 0.38 | 0.31 | 1.15 | 1.07 | 1.91 | 0.06 | 0.06 |
| 3/8 | 1 | 0.28 | 0.66 | 0.44 | 0.38 | 1.42 | 1.28 | 2.31 | 0.13 | 0.06 |
| 7/16 | 1-1/2 | 0.43 | 0.75 | 0.5 | 0.44 | 1.63 | 1.48 | 2.67 | 0.13 | 0.06 |
| 1/2 | 2 | 0.59 | 0.81 | 0.63 | 0.5 | 1.81 | 1.66 | 3.03 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | 1.25 | 1.06 | 0.75 | 0.63 | 2.32 | 2.04 | 3.76 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | 2.63 | 1.25 | 0.88 | 0.81 | 2.75 | 2.4 | 4.53 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | 3.16 | 1.44 | 1 | 0.97 | 3.2 | 2.86 | 5.33 | 0.25 | 0.06 |
| 1 | 8-1/2 | 4.75 | 1.69 | 1.13 | 1 | 3.69 | 3.24 | 5.94 | 0.25 | 0.06 |
| 1-1/2 | 9-1/2 | 6.75 | 1.81 | 1.25 | 1.25 | 4.07 | 3.61 | 6.78 | 0.25 | 0.06 |
| 1-1/4 | 12 | 9.06 | 2.03 | 1.38 | 1.38 | 4.53 | 3.97 | 7.5 | 0.25 | 0.13 |
| 1-3/8 | 13-1/2 | 11.63 | 2.25 | 1.5 | 1.5 | 5.01 | 4.43 | 8.28 | 0.25 | 0.13 |
| 1-1/2 | 17 | 15.95 | 2.38 | 1.63 | 1.62 | 5.38 | 4.84 | 9.05 | 0.25 | 0.13 |
| 1-3/4 | 25 | 26.75 | 2.88 | 2 | 2.12 | 6.38 | 5.78 | 10.97 | 0.25 | 0.13 |
| 2 | 35 | 42.31 | 3.25 | 2.25 | 2.36 | 7.25 | 6.77 | 12.74 | 0.25 | 0.13 |
| 2-1/2 | 55 | 71.75 | 4.12 | 2.75 | 2.63 | 9.38 | 8.07 | 14.85 | 0.25 | 0.25 |
